CHIQ C8UT makes the movies more colorful and viewing experience to the highest level

With RGB 4K UHD 3840 x 2160 resolutions, every single color detail of the movies are brought to life. With MEMC technology, every fast movement in the video was so smooth without lagging to deliver real life experience.

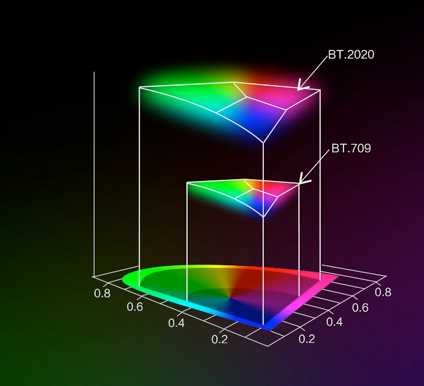

Wide color gamut and high ANSI Lumens delivers vivid and eyes soothing visual quality.

Optical Parameters

Light Source: Laser (RGB)

Display: DLP (Digital Lighting Process)

DMD Chip: 0.66” S610 4K

Color Gamut: 120% BT.2020

Display Size: 100” (80 - 150” adjustable)

Throw Ratio: 0.233

Brightness: 3000 lm (450 nit@100”)

Resolution: 3840 x 2160

Contrast: 15000 : 1

Light Source lifetime: 25,000 Hours

Electrical Parameters

Voltage: AC100 - 242V, 50-60Hz

Power Consumption: 310W (W/O audio)

Standby Power Consumption: 0.5W

Noise: TYP 33dB (A) 1m

System Parameters

Operating System: Android 8.0

CPU: Cortex 73/Duo-core + Cortex 53/Duo-core

(1.7GHz)

GPU: Mali-G51/Duo-core

RAM: 3GB

Storage: 64GB EMMC

Refresh Frequency: 120Hz

Image Quality

Motion Compensation: 4K MEMC

Video Decoding (USB Support): MPEG2, MPEG4, H.264/H.265, RM/RMVB etc.

H.265/VP9 Decoding: Support

Picture Format (USB Support): JPG, PNG, BMP etc.

Sound Parameters

Audio Decoding: MPEG1/2, Layer 1/2, Mp3,, Dolby (AC-3), WMA, AAC, HE-AAC

Built-in Speaker: 5Wx 1

External Speakers: 20Wx2

Interface

Input: USB2.0 x 2, HDMI2.0 x 2 (including ARC x 1), VGA, Audio Input (L/R, 3.5mm), RJ45

Output: Digital audio output (coaxial)

Analog audio output (L/R, 3.5mm), Passive audio R/L

Internet

Connectivity: Wireless + Cable

Interactive Device

Wifi: IEEE 802.11a/b/g/n/ac, 2.4GHz/5GHz Dual

Frequency

Multi-Screen Interaction: Support

Bluetooth: 2.1/4.2/5.0

DLNA: Support

Laser Projector

Color: Dark Blue

Material: PC + ABS

Size: 486 x 175mm

Net Weight: Approx. 14Kg

Projection Mode: Front Desk, Rear Desk, Front ceiling mounted, Rear Ceiling mounted

Focusing: Motor Focusing

Keystone: 8 Points Keystone Correction

Package

Package Size: 640 x 580 x 440mm

Gross Weight: 22.5Kg

List of Items: Laser Projector, Manual, Power Cord, HDMI cable, Audio (1 pair), Remote Control, Screw x 4, Battery AAA (1 pair)

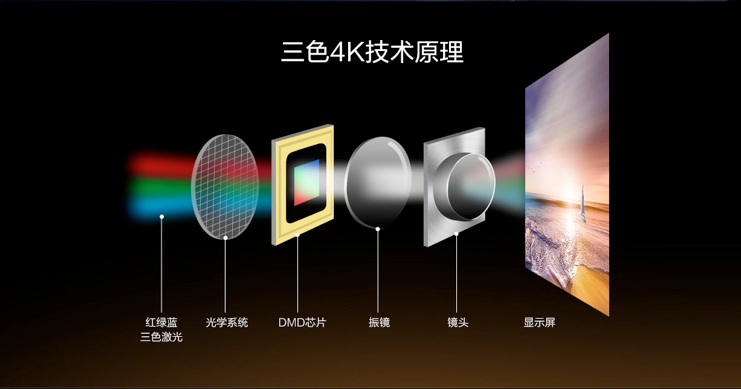

Laser, the future of display technology

CHIQ C8UT, the most advanced Red-Green-Blue laser light source projector, projects a massive screen up to 150” on the wall, with the color gamut of 120% BT.2020, Brightness 3000 ANSI lumens (450 nit @100”) and gorgeous 4K resolution.

It makes your home living room a private, top class cinema, an excellent place for family time. With diffuse reflection projection technology, it protects eyes unlike the traditional direct light LED TV.

“Laser Display Technology Innovation Gold Award”

by IFA Product Technical Innovation Award 2019
