Laser, the future of display technology

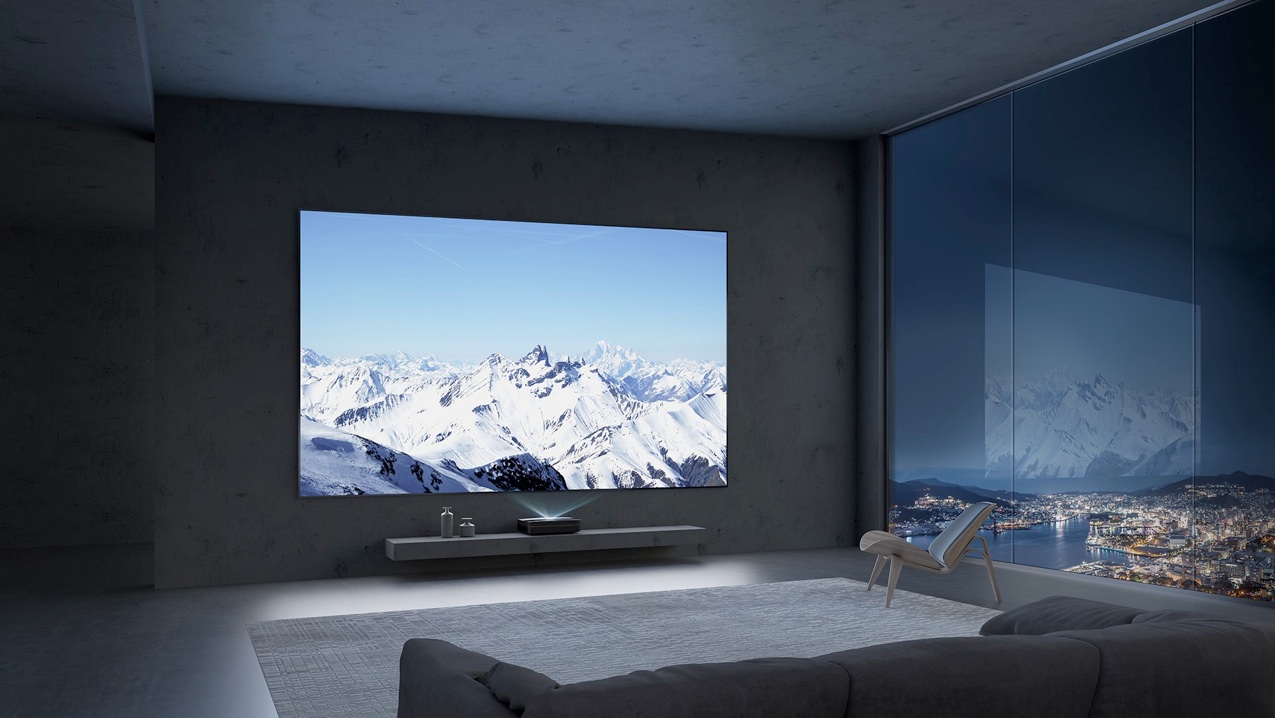

Changhong V8S can project a massive screen up to 150” on the wall, with the color gamut of 130% and gorgeous 4K resolution.

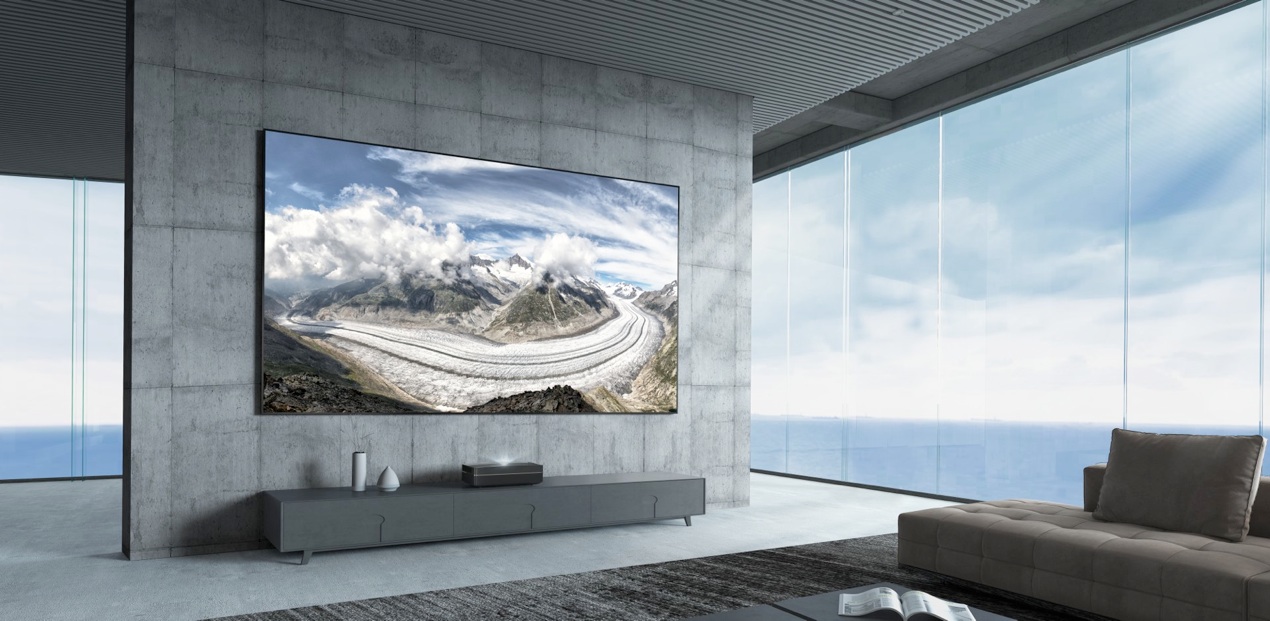

It makes your home living room a private, top class cinema, an excellent place for family time. With diffuse reflection projection technology, it protects eyes unlike the traditional direct light LED TV.

It also comes with 8-Points electronic Keystone Corrections feature for seamless picture calibration.

feature 8 Points Keystone Adjustment

Eye & Ear Protection

- Harmless diffuse reflection light protects eyes

  from TV direct light.

  1. -Eye protection body sensor avoid conceivable


  1. -Create a healthy environment with 30dB low

  machine noise.

Super Large

  1. -Adopt American DLP digital optical imaging

  technology, create cinema image quality with

  pure color.

  1. -Projection screen size adjustable from 80” up

  to 150” giant screen makes you enjoy cinema

  film at home.

Super Bright and True Color

  1. -High brightness 2500 ANSI Lumens makes

  image clear.

  1. -Pure laser source & wide color gamut more

  than or equal to 130% guarantee true color

  nature color.

Super Long Lifetime

  1. -25,000 hours super long lifetime.

  2. -Sealed optical machine together with

  honeycomb dust filter guarantees long using


System Parameters

Operating System: Android 8.0

CPU: Cortex 73/Duo-core + Cortex 53/Duo-core


GPU: Mali-G51/Duo-core


Storage: 64HB EMMC

Refresh Frequency: 60Hz

Image Quality

Motion Compensation: MEMC

Video Decoding (USB Support): MPEG1/2, MPEG4, H.263/H.264/H.265, AVS, VC1 etc.

H.265/VP9 Decoding: Support

Picture Format (USB Support): JPG, PNG, BMP etc.

Sound Parameters

Audio Decoding: MPEG1/2, Layer 3, VORBIS, WMA, AC4 etc.

Built-in Speaker: 10W x 2


Input: USB2.0 x 2, HDMI2.0 x 2, RS232, RJ45

Output: Digital audio output (coaxial), Optical SPDIF

Analog audio output (L/R, 3.5mm)

Optical Parameters

Light Source: Laser

Display: DLP (Digital Lighting Process)

DMD Chip: ECD S410 0.47” 4K

Color Gamut: 130%

Display Size: 100” (80 - 150” adjustable)

Throw Ratio: 0.21

Brightness: 2500 lm

Resolution: 3840 x 2160

Contrast: 15000 : 1

Light Source lifetime: 25,000 Hours

8-Points Keystone Corrections

Electrical Parameters

Voltage: AC100 - 242V, 50-60Hz

Power Consumption: 300W (W/O audio)

Noise: TYP 33dB (A)


Connectivity: Wireless + Cable

Interactive Device

Wifi: IEEE 802.11a/b/g/n/ac, 2.4GHz/5GHz Dual Frequency

Multi-Screen Interaction: Support

Bluetooth: 2.1/4.2/5.0

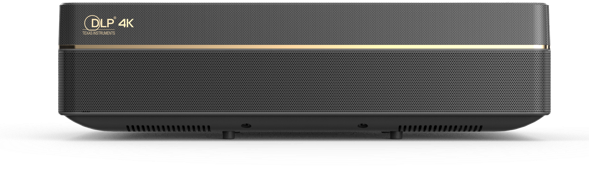

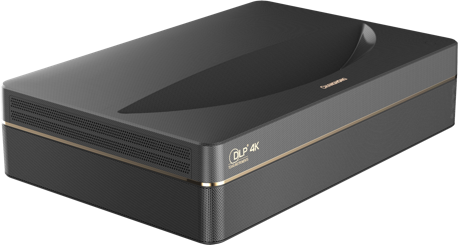

Laser Projector

Color: Dark Grey Carbon Fiber Texture Finishing

Material: PC + ABS + One Body Metal Mesh

Size: 485 x 325 x 135mm

Net Weight: Approx. 10.2Kg

Projection Mode: Front Desk, Rear Desk, Front ceiling mounted, Rear Ceiling mounted

Focusing: Motor Focusing


Package Size: 620 x 470 x 380mm

Gross Weight: 14.5Kg

List of Items: Laser Projector, Manual, Power Cord, HDMI cable, Remote Control, Screw x 4



NOTE: Specifications are correct as of the date of publication but may subjected to changes without further notice. Please clarify with us or our local representatives before making any purchase.

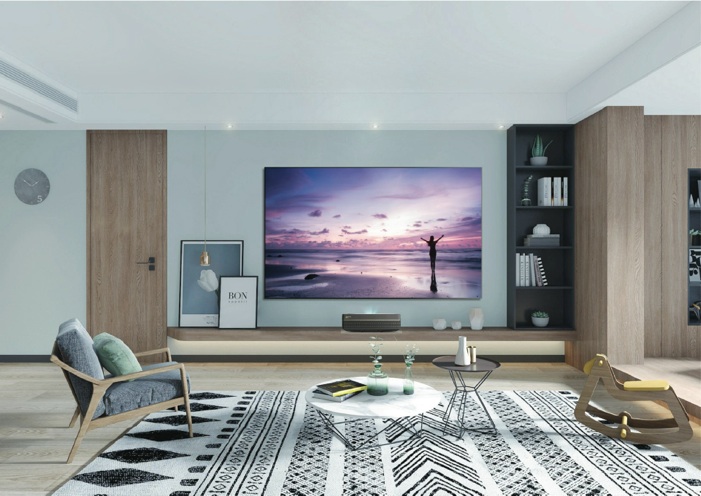

Perfect for modern home living
