C7UG
C7UG
by Changhong
Maintenance Free !!
Movie comes alive with CHIQ C7UG
With 4K UHD 3840 x 2160 resolutions. Every single details of the movies are sharp and clearly projected. With MEMC technology, every fast movement in the video was so smooth without lagging to deliver real life experience.
Wide color gamut and high ANSI Lumens delivers vivid and eyes soothing visual quality.
Visit our Facebook page
About Us
Viqmax Sdn Bhd
Brands
Design Visuals
Products
Promotions
Designed by Viqmax Sdn Bhd 2022. All Rights Reserved
Optical Parameters
Light Source: Laser
Display: DLP (Digital Lighting Process)
DMD Chip: 0.66” S610 4K
Color Gamut: 130% BT.709
Display Size: 100” (80 - 150” adjustable)
Throw Ratio: 0.233
Brightness: 3000 lm
Resolution: 3840 x 2160
Contrast: 15000 : 1
Light Source lifetime: 25,000 Hours
Internet
Connectivity: Wireless + Cable
Interactive Device
Eye Protection: Support
Wifi: IEEE 802.11a/b/g/n/ac, 2.4GHz/5GHz Dual
Frequency
Multi-Screen Interaction: Support
Bluetooth: 2.1/4.2/5.0
DLNA: Support
Electrical Parameters
Voltage: AC100 - 242V, 50-60Hz
Power Consumption: 320W (W/O audio)
Standby Power Consumption: 0.5W
System Parameters
Operating System: Android 8.0
CPU: Cortex 73/Duo-core + Cortex 53/Duo-core
(1.7GHz)
GPU: Mali-G51/Duo-core
RAM: 3GB
Storage: 64GB EMMC
Image Quality
Motion Compensation: MEMC
Video Decoding (USB Support): MPEG2, MPEG4, H.264/H.265, AVS, VCI etc.
H.265/VP9 Decoding: Support
Picture Format (USB Support): JPG, PNG, BMP etc.
Sound Parameters
Audio Decoding: MPEG1/2, Layer 1/2, Mp3,, Dolby (AC-3), WMA, AAC, HE-AAC
Built-in Speaker: 5Wx 1
External Speakers: 20Wx2

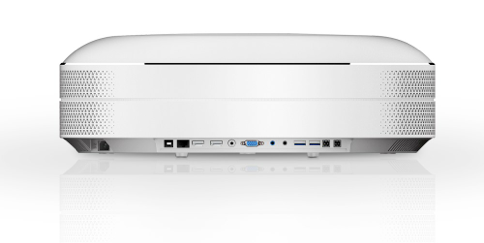

Interface
Input: USB2.0 x 2, HDMI2.0 x 2 (including ARC x 1), VGA, Audio Input (L/R, 3.5mm), RJ45
Output: Digital audio output (coaxial)
Analog audio output (L/R, 3.5mm), Passive audio R/L
Laser Projector
Color: White
Material: PC + ABS
Size: 486 x 175mm
Net Weight: Approx. 9.8Kg
Projection Mode: Front Desk, Rear Desk, Front ceiling mounted, Rear Ceiling mounted
Focusing: Motor Focusing
Keystone: 8 Points Keystone Correction
Package
Package Size: 640 x 580 x 440mm
Gross Weight: 18Kg
List of Items: Laser Projector, Manual, Power Cord, HDMI cable, Audio (1 pair), Remote Control, Screw x 4, Battery AAA (1 pair)

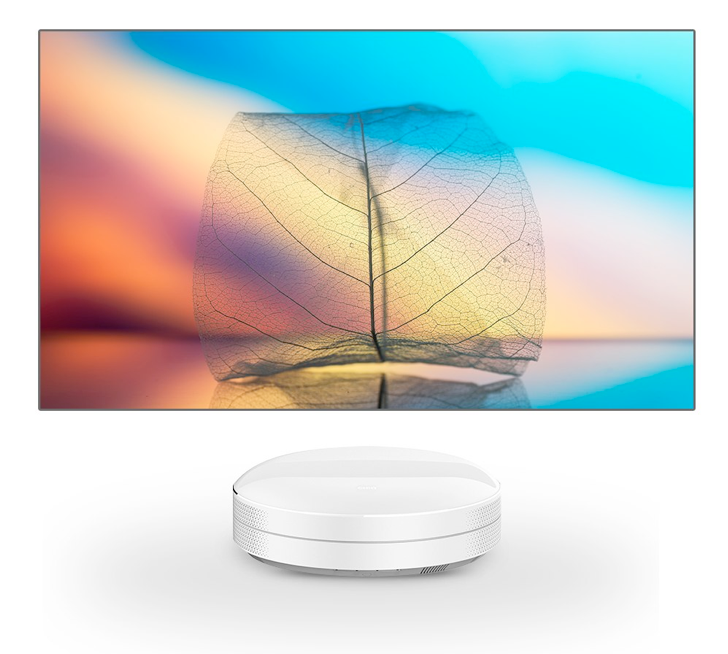

Laser, the future of display technology
CHIQ C7UG, 450nit @100” high brightness on screen laser projector, color gamut of 130% BT.709, with 25,000 hours optical engine lifespan, the breakthrough of laser display technology, it projects a massive screen up to 150” on the wall, with gorgeous 4K resolution, it makes your home living room a private, top class cinema, an excellent place for family time. With diffuse reflection projection technology, it protects eyes unlike the traditional direct light LED TV.
